DTV+ TechySpecs

DTV+ Digital Shower Interface

The DTV+ luxury shower system, at a minimum, requires one interface, a K-99694 mounting bracket, and the K-99695 system controller. Beyond that, you design your dream shower by selecting the components you like, from rainheads, body sprays, and spa-like hydrotherapy to music speakers, steam, and chromatherapy.

3 5/16″ x 5 1/8″ x 1 1/16″

84 x 130 x 27 mm

K-99693-NA

DTV+ Digital Interface
DTV+ Digital Interface Mounting Bracket

DTV+ Digital Shower Interface Mounting Bracket

Use this wall-mount bracket for mounting your DTV+ digital shower interface. Choose from a range of finishes to coordinate with other components in the shower and complement the aesthetics of your space. The mounting bracket is surface mounted to provide ease of installation and to maximize location flexibility.

3 5/16″ x 5 5/8″ x 1″

84 x 143 x 25 mm

Available in CP, BN, SN, BL

K-99694

DTV+ Digital Shower System Controller Module

The DTV+ system controller acts as the wiring center and “brain” for the DTV+ digital showering system, providing connections for every component and powering the digital interfaces. Every DTV+ luxury shower system, at a minimum, requires one K-99693 interface, a K-99694 mounting bracket, and this system controller – beyond that, everything is customizable.

9 1/2″ x 5 3/8″ x 1 3/4″

241 x 137 x 44 mm

K-99695-NA

DTV+ System Controller Module & Power Supply
DTV+ Eco System Controller Module 1

DTV+ Eco Digital Shower System Controller Module

The DTV+ system controller acts as the wiring center and “brain” for the DTV+ digital showering system, providing connections for every component and powering the digital interfaces. Every DTV+ luxury shower system, at a minimum, requires one K-99693 interface, a K-99694 mounting bracket, and this system controller – beyond that, everything is customizable. This eco-friendly, water-saving version meets CALGreen requirements.

9 1/2″ x 5 3/8″ x 1 3/4″

241 x 137 x 44 mm

K-99695-E-NA

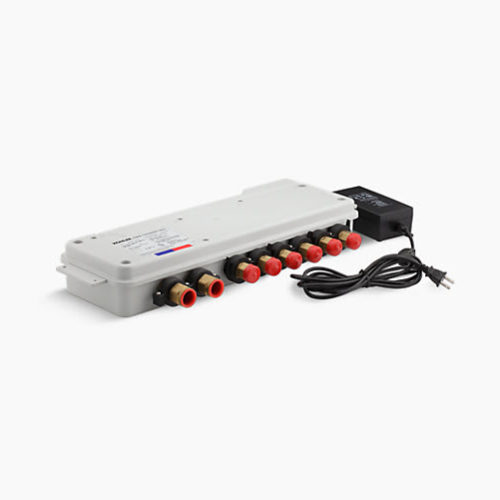

DTV+ 6-Port Digital Shower Thermostatic Valve

This precision-engineered, best-in-class digital thermostatic valve is used with DTV+, and its easy plug-and-go design makes installation simple. With six independently controllable outlet ports, this valve is ideal for any custom showering application. Additionally, with a DTV+ luxury shower system, this valve can also be used in combination with a second digital valve to provide either additional outlets or to deliver two different water temperatures at the same time.

22 1/4″ x 9 3/16″ x 3 5/16″

565 x 233 x 84 mm

K-682-K-NA

DTV+ 6-Port Digital Thermostatic Valve
DTV+ 3-Port Digital Thermostatic Valve

DTV+ 3-Port Digital Shower Thermostatic Valve

This precision-engineered, best-in-class digital thermostatic valve is designed for use with the DTV+ digital shower system, and its easy plug-and-go design makes installation simple. With three independently controllable outlet ports, this valve is ideally suited for applications where up to three shower outlets are required.

12″ x 9 1/2″ x 2 11/16″

305 x 241 x 68 mm

K-557-K1-NA

DTV+ 2-Port Digital Shower Thermostatic Valve

This precision-engineered, best-in-class digital thermostatic valve is designed for use with the DTV+ digital shower system, and its easy plug-and-go design makes installation simple. With two independently controllable outlet ports, this valve is ideally suited for applications where only one or two shower outlets are required.

9 7/16″ x 9 1/2″ x 2 11/16″

240 x 241 x 68 mm

K-528-K1-NA

DTV+ 2-Port Digital Thermostatic Valve
DTV+ 25' (7.62 m) Data Cable

DTV+ 25′ (7.62 m) Digital Shower Data Cable

Designed for use with the DTV+ luxury showering system, this cable is required to connect the K-682-K six-port thermostatic valve to the DTV+ system controller.

25′ (7.62 m)

for K-682-K 6 Port Valve

K-97172-NA

DTV+ Digital Shower Amplifier Module

The KOHLER DTV+ amplifier uses Bluetooth® technology to stream and control music from your favorite mobile devices, providing a simple and elegant way to add audio to an existing space, a remodel, or a new installation project. Primarily designed for use with the DTV+ digital shower control system, this amplifier can also be on its own to provide outstanding audio output inside or outside the home.

3 5/8″ x 4 1/4″ x 1 3/16″

92 x 108 x 30 mm

K-99696-NA

DTV+ Amplifier Module & Power Supply
DTV+ Bridge Module

DTV+ Digital Shower Bridge Module

KOHLER DTV+ switch modules give you the ability to integrate control of bathroom electrical devices with the DTV+ system, expanding the convenience and comfort of the DTV+ luxury showering system. Modules allow for wireless control of multiple electrical devices such as bathroom lights, fans, and towel warmers.

2 5/16″ x 2 5/16″ x  7/8″

59 x 59 x 22 mm

K-99701-NA

DTV+ Digital Shower Dimmer Switch Module

KOHLER DTV+ switch modules give you the ability to integrate control of bathroom electrical devices with the DTV+ system, expanding the convenience and comfort of the DTV+ luxury showering system. Modules allow for wireless control of multiple electrical devices such as bathroom lights, fans, and towel warmers.

2″ x 1 15/16″ x 3/4″

51 x 49 x 19 mm

K-99700-NA

DTV+ Digital Shower Dimmer Switch Module
DTV+ Digital Shower Kohler Konnect Module

DTV+ Digital Shower Kohler Konnect Module

Take your DTV+ luxury showering system to a new level of convenience with KOHLER Konnect™ featuring voice-enabled technology. With a simple command, you can walk into a shower at the perfect temperature, flowing from your preferred outlets. The DTV+™ KOHLER Konnect™ module makes it all possible, and it works with the KOHLER® Konnect™ app, where you can set all your preferences for showering, spa experiences, lighting and more.

3″ x 5 3/4″ x 3/4″

76 x 146 x 19 mm

K-97999-NA

DTV+ Digital Shower On/Off Switch Module

KOHLER DTV+ switch modules give you the ability to integrate control of bathroom electrical devices with the DTV+ system, expanding the convenience and comfort of the DTV+ luxury showering system. Modules allow for wireless control of multiple electrical devices such as bathroom lights, fans, and towel warmers. This on/off switch module retrofits to your existing light switches.

2″ x 1 15/16″ x 3/4″

51 x 49 x 19 mm

K-99699-NA

DTV+ Digital Shower On Off Switch Module
DTV+ Interface Conversion Kit

DTV+ Digital Shower Conversion Kit for DTV I & II Auxiliary Interface

Update your DTV showering system with touchscreen control. This kit is an easy way to upgrade an installed DTV I or DTV II auxiliary interface to the latest DTV+ touchscreen interface. By utilizing the existing interface wall sleeve, the new interface can be installed without making any expensive changes to the finished wall surface. The kit also includes a wiring connection adapter, eliminating the need to route new wiring or open walls.

4 1/2″ x 8 1/2″ x 1 9/16″

114 x 216 x 40 mm

K-97171-NA

DTV+ Digital Shower Conversion Kit for DTV I Interface

Update your DTV showering system with touchscreen control. This kit is an easy way to upgrade an installed DTV I interface to the latest DTV+ touchscreen interface. By utilizing the existing interface wall sleeve, the new interface can be installed without making any expensive changes to the finished wall surface. The kit also includes a wiring connection adapter, eliminating the need to route new wiring or open walls.

4 1/2″ x 8 1/2″ x 1 9/16″

114 x 216 x 40 mm

K-99702-NA

DTV+ Interface Conversion Kit
DTV+ Interface Conversion Kit

DTV+ Digital Shower Conversion Kit for DTV II Interface

Update your DTV showering system with touchscreen control. This kit is an easy way to upgrade an installed DTV II interface to the latest DTV+ touchscreen interface. By utilizing the existing interface wall sleeve, the new interface can be installed without making any expensive changes to the finished wall surface. The kit also includes a wiring connection adapter, eliminating the need to route new wiring or open walls.

4 1/2″ x 8 1/2″ x 1 9/16″

114 x 216 x 40 mm

K-97170-NA

Real Rain Luxury Shower Overhead Panel

Experience the gentle buildup of a warm summer rainstorm in your shower. The Rain Real luxury shower overhead panel is designed with a water reservoir that relies on gravity to shape individual drops that replicate rainfall. When the reservoir fills, water spills into the remainder of the showerhead, covering over 775 nozzles, and raindrops begin to fall softly and slowly then grow in strength and speed until the shower feels, sounds, and looks like a warm summer rain. Push a button and the Deluge feature releases a reservoir of water in one powerful instant to simulate an energetic burst of heavy rain.

19″ x 19″ x 4″

483 x 483 x 102 mm

K-76728-0

Real Rain Digital Shower Overhead Panel 1

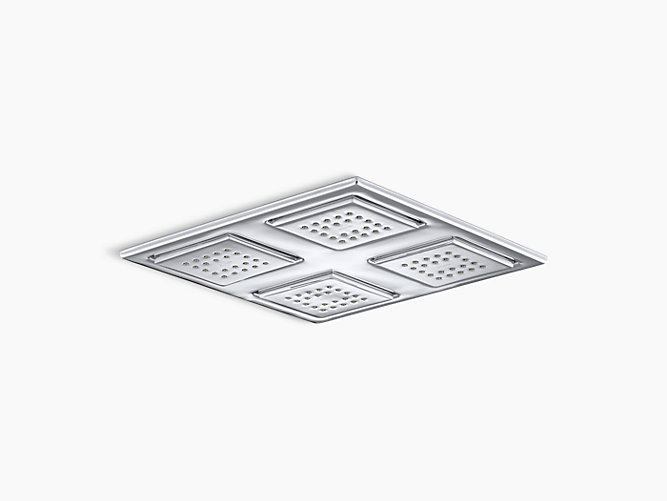

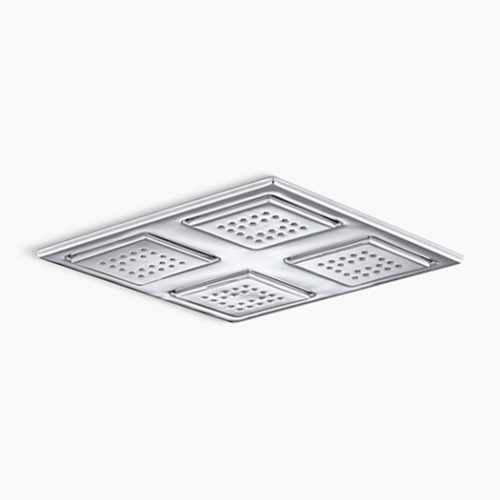

WaterTile Rain Overhead Shower Panel with Four 22 Nozzle Sprayheads 1

WaterTile Rain Overhead Digital Shower Panel with Four 22 Nozzle Spray Heads

With four 22-nozzle spray heads, WaterTile Square Rain overhead digital showering panels provide luxurious water delivery that even Mother Nature would envy. Four fully adjustable and pivoting square spray heads distribute a relaxing shower of water that simulates a gentle summer rain.

9 7/8″ x 9 7/8″ x 2 5/8″

251 x 251 x 92 mm

K-98740-CP

WaterTile Round 27 Nozzle Luxury Body Spray 2.0 gpm with Stimulating Spray and Katalyst Air-Induction Technology

The allure of WaterTile luxury body sprays is in both their subtle, low-profile design and their profound performance. This WaterTile digital body spray uses Katalyst air-induction technology for a completely indulgent showering experience. With a new nozzle pattern and internal waterway design, Katalyst technology maximizes every water drop and creates a richer, more intense flow of water that heightens your sensory experience. By infusing two liters of air per minute, Katalyst delivers a powerful, voluptuous spray that clings to the body with larger, fuller water drops.

4 7/8″ Diameter x 3 1/8″

124 x 79 mm

K-8013-AK-CP

WaterTile Round 27-nozzle body spray 2.0 gpm with stimulating spray and Katalyst air-induction technology 1
WaterTile Round 27-Nozzle 1.0 gpm body spray with Katalyst air-induction technology 1

WaterTile Round 27-Nozzle 1.0 gpm Luxury Body Spray with Katalyst Air-Induction Technology

The allure of WaterTile luxury body sprays is in both their subtle, low-profile design and their profound performance. This WaterTile digital shower body spray uses Katalyst air-induction technology for a completely indulgent showering experience. With a new nozzle pattern and internal waterway design, Katalyst technology maximizes every water drop and creates a richer, more intense flow of water that heightens your sensory experience. By infusing two liters of air per minute, Katalyst delivers a powerful, voluptuous spray that clings to the body with larger, fuller water drops.

4 7/8″ Diameter x 3 1/8″

124 x 79 mm

K-77119-CP

WaterTile Round 54 Nozzle Luxury Shower Body Spray with Soothing Spray

WaterTile luxury shower body sprays lie virtually flush to the wall and can be placed almost anywhere. This round 54-nozzle configuration delivers a relaxing spray for a soothing hydrotherapy experience.

4 7/8″ Diameter x 3 1/8″

124 x 79 mm

K-8014-BL

WaterTile Round 54 Nozzle Body Spray with Soothing Spray 1
WaterTile Square 54 Nozzle Digital Shower Body Spray 2

WaterTile Square 54 Nozzle Digital Shower Body Spray

WaterTile digital shower body sprays lie virtually flush to the wall and can be placed almost anywhere. This square 54-nozzle configuration delivers a relaxing spray for a soothing hydrotherapy experience.

3 1/8″ x 4 7/8″ x 2 5/8″

79 x 124 x 67 mm

K-8002-CP

WaterTile Square 22 Nozzle Digital Shower Body Spray with Stimulating Spray

WaterTile digital shower body sprays lie virtually flush to the wall and can be placed almost anywhere. This square 22-nozzle configuration delivers a high-volume, invigorating spray for a rejuvenating hydrotherapy experience.

3 1/8″ x 4 7/8″ x 2 5/8″

79 x 124 x 67 mm

K-8003-CP

WaterTile Square 22 Nozzle Digital Shower Body Spray 1
